edding portable 50 - The smartest high-end handheld printer of all time

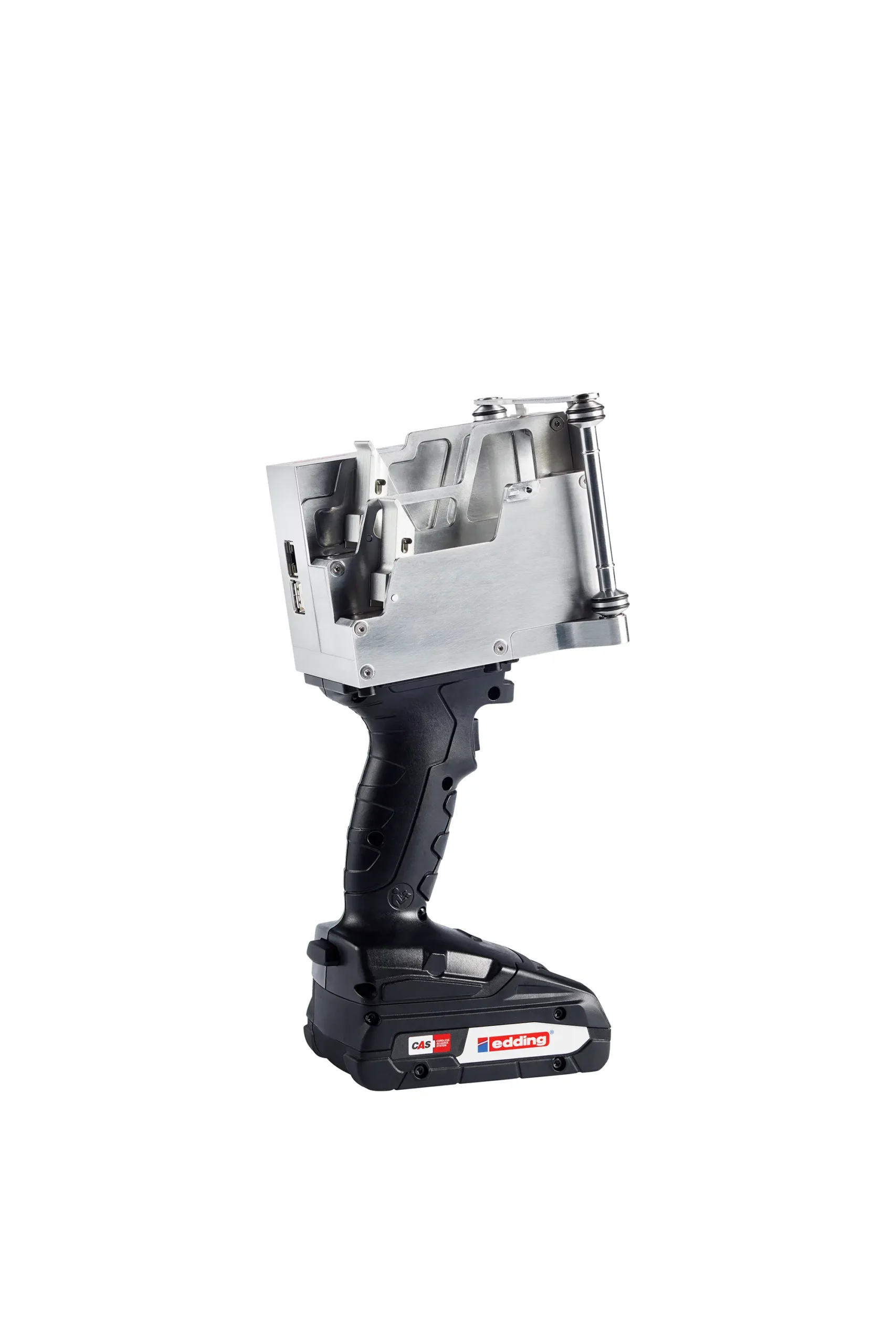

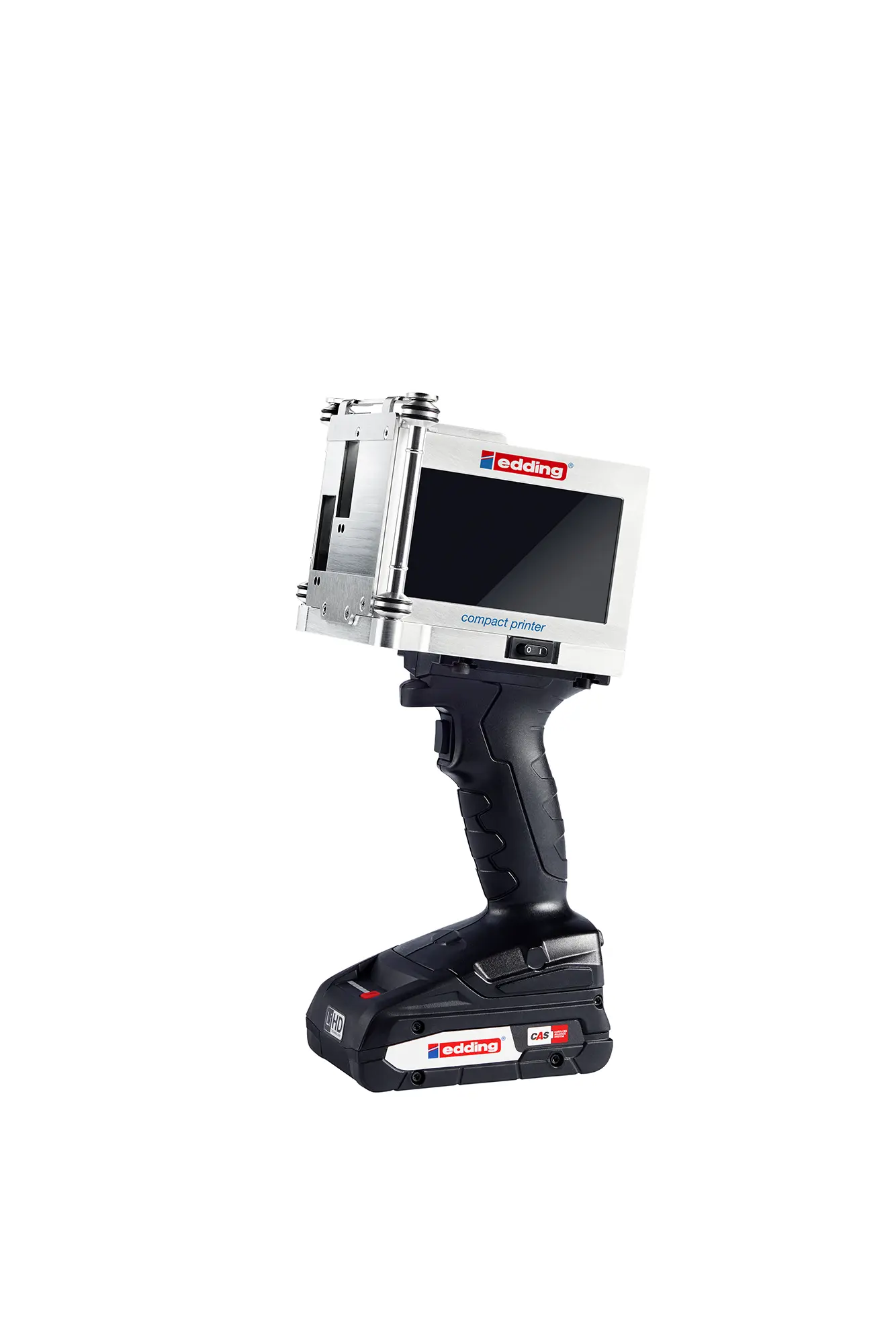

edding portable 50
Up to 50 mm high resolution mobile printing
The edding portable 50 is an inkjet printer. It is suitable for applications beyond the production line. With a print height of 50 mm, it can easily print on large surfaces such as wooden boxes or cartons for incoming goods.
Equipped with the diverse functionalities of the edding in-line printers, supplemented by an original Metabo LiHD industrial battery, the portable 50 in the form of a mobile printer offers the perfect solution for applications away from the production line.
Due to high demand, the delivery time is 4-6 weeks.
Derzeit nicht verfügbar
Overview
Details and specs
Downloads
Overview
Benefits
- Pin sharp print with up to 50 mm print height
- Work continuously with 10h battery capacity
- Align print image perfectly using the positioning laser
- Send data wirelessly to the device via WiFi without middleware
- Select and create texts quickly & easily on the touch screen
- Destructible due to solid aluminum & stainless steel structure
- Perfect rolling over the smooth-running guide rollers
Scope and surface
With the portable 50, barcodes, data matrix codes, texts and logos can be applied anywhere at a print height of 50mm. Thanks to edding’s ink expertise, high-resolution printing (300 dpi) with different ink types as well as colors is possible on almost any material such as cardboard, plastic, glass and metal. Suitable for the food and beverage industry, logistics and transport as well as automotive and industry.
Details and specs
Printing system
- High-res TIJ printing technology with 300 dpi
- Up to 44 lines, between 1.0 mm and 50 mm (2 inches)
- Wide ink portfolio for almost all materials and surfaces in multiple colors
- Alphanumeric characters, logos, date/time, counter, lot/box number, 1D/2D barcodes
- Internal memory for over 100,000 texts and logos
- RJ 45 Ethernet connection including DHCP
- Applications via MQTT, OPC UA, http request and TCP server
- Web server for access from any workstation
- Automatic ordering of new cartridges by the printer on demand
- Intuitive user interface with true WYSIWYG print preview
- Automatic wizzards for printer setup
- Graphical instructions for mounting, software update and cartridge cleaning in the printer display
- Cordless compact keyboard (included)
- Any tablet, smartphone or PC
- 4.3-inch capacitive color LCD touchscreen with LED technology
- On/off, print, low ink, alarm, print direction right/left
- 2 high-speed USB 2.0 inputs
- German, English, Spanish, Russian, Turkish, Portuguese, Chinese simplified
- Extra robust and impact resistant aluminum housing
- Stainless steel deflector on the front of the printer for food environments
- 4-in-1 sandwich design (controller, screen, printhead and ink cartridge)
- Stand-alone unit, can be used without PC
- Metabo LiHD premium industrial battery (4000 mAh)
- Charger AC 100-240 V, 50/60 Hz, 3 A, signal generator
- Battery power for 12 hours of use, takes only 35 minutes to charge
- Can be used for other Metabo power tools
- 297 x 152 x 104 mm
- 1.2 kg excluding battery and ink cartridge
- 5-40 °C (41-104 °F) at 10-90 % humidity (non-condensing)
- Made in Germany
Scope of delivery
- edding portable 50 printing system
- Stackable Tanos transport case
- Metabo LiHD high performance battery with 4.0 Ah
- Metabo battery quick charger
